Electrical steel (silicon steel coil)

Electrical steel (silicon steel coil) is mainly divided into two categories: grain-oriented electrical

steel and grain non-oriented electrical steel. The direction of easy magnetization grains of

oriented electrical steel is distributed along the rolling direction. The rolling direction has excellent

characteristics such as high magnetic induction, low iron loss and low magnetostriction. At the

same time, it can also be processed by magnetic domain refinement technology to obtain lower

iron Loss of performance, widely used in the field of transformer industry. The grain direction of

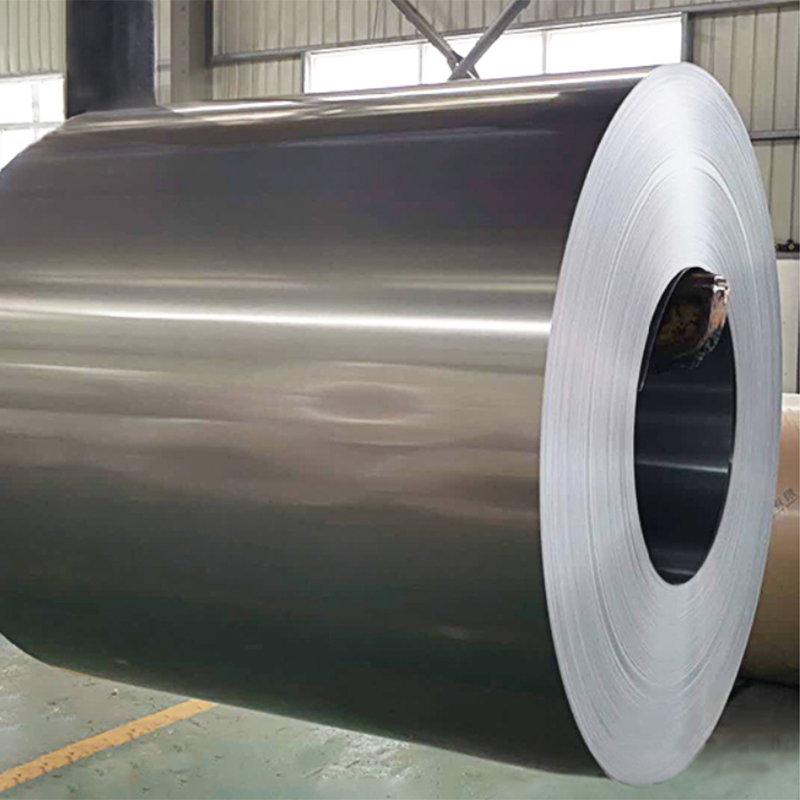

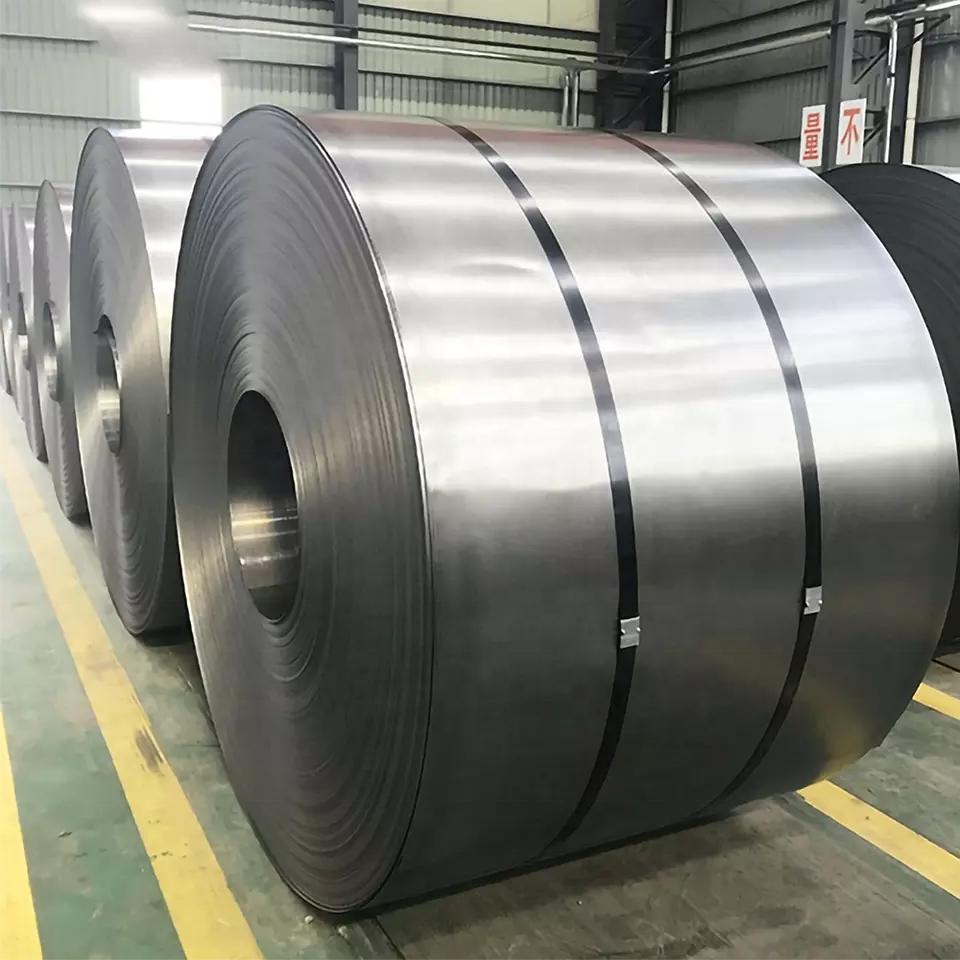

non-oriented electrical steel is randomly distributed, and the electromagnetic properties are

uniform in all directions. It is widely used in the motor industry.

The difference between oriented silicon steel and non-oriented silicon steel Non-oriented silicon

steel: ferrosilicon alloy with very low carbon content. In the deformed and annealed steel sheet, its

grains are distributed randomly. The silicon content of the alloy is 1.5% to 3.0%, or the sum of the

silicon and aluminum content is 1.8% to 4.0%. The products are usually cold-rolled plates or strips,

which are mainly used to manufacture motors and generators.

Non - oriented silicon steel sheet is hot rolled billet or continuous casting billet into a thickness of

about 2.3mm coil. For low-silicon products, hot rolled rolls are cold rolled to 0.5mm thick after pickling.

For the manufacture of high silicon products, after pickling in hot rolling (or after normalizing at 800 ~

850℃ and then pickling), cold rolled to 0.55 or 0.37mm thick, annealed at 850℃ in a continuous furnace

with hydrogen and nitrogen mixture atmosphere, and then cold rolled to 0.50 or 0.35mm thick at a low

reduction rate of 6 ~ 10%. The small reduction rate of cold rolling can make the grain grow and the iron

loss decrease during annealing. Both cold rolled sheets are finally annealed at 850℃ in a continuous

furnace in a 20% hydrogen nitrogen mixture atmosphere, and then coated with phosphate and chromate

insulating film. After cold rolling to the thickness of the finished product, the supply of 0.35mm and 0.5mm

thick steel strip. The Bs of cold rolled non - oriented silicon steel is higher than that of oriented silicon steel.

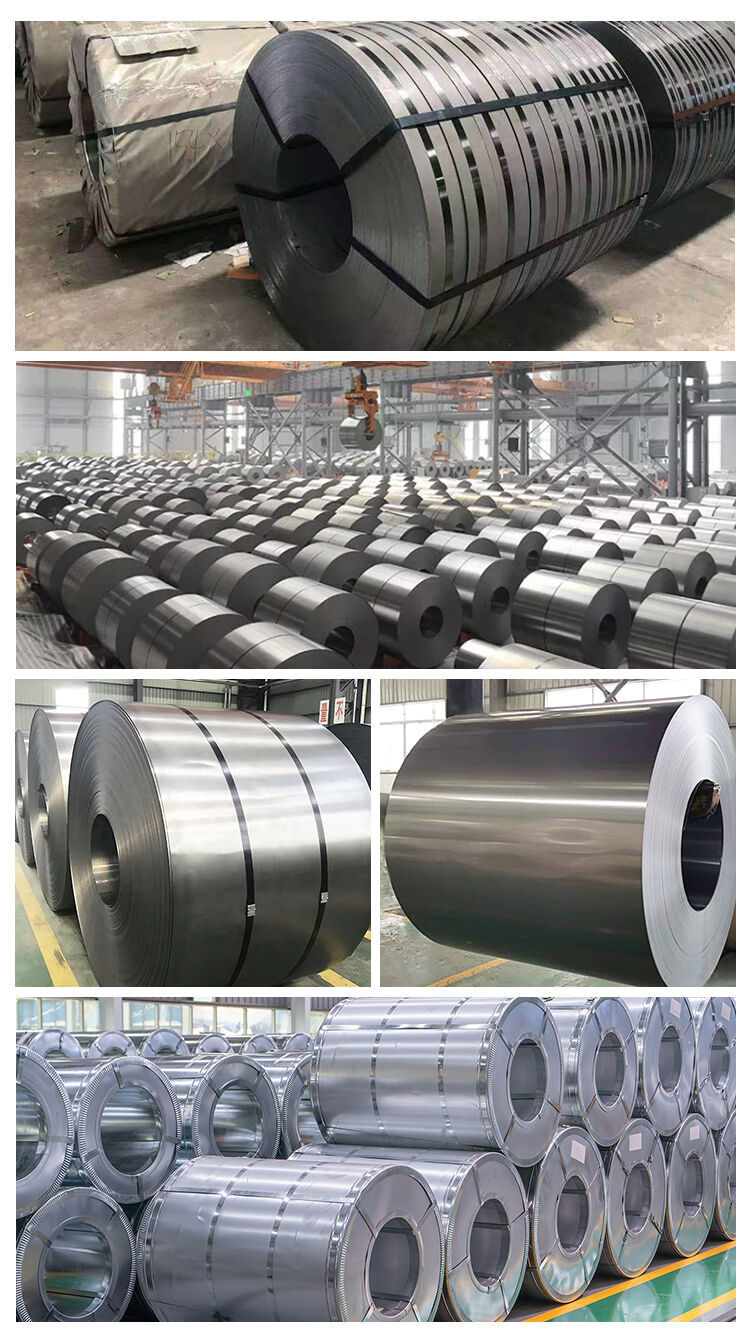

Product Details

Product Advantages

1.Stable performance

2.Excellent processing performance: High precision dimension and excellent mechanical properties make

it easy to be sheared,punched and stacked by high speed punch machine. It also have good welding performance.

3.Excellent performance of Insulating coating: Uniform color, good insulation, high adhesion, excellent heat resistance and excellent processing performance.

Application

Large mechanical and electrical: water, fire, wind, nuclear power.

Household appliances: high efficiency variable frequency air conditioning compressor, high efficiency, variable frequency refrigerator compressor.

Small and medium-sized electromechanical equipment.

New energy vehicle: drive motor, new energy vehicle micromotor.
