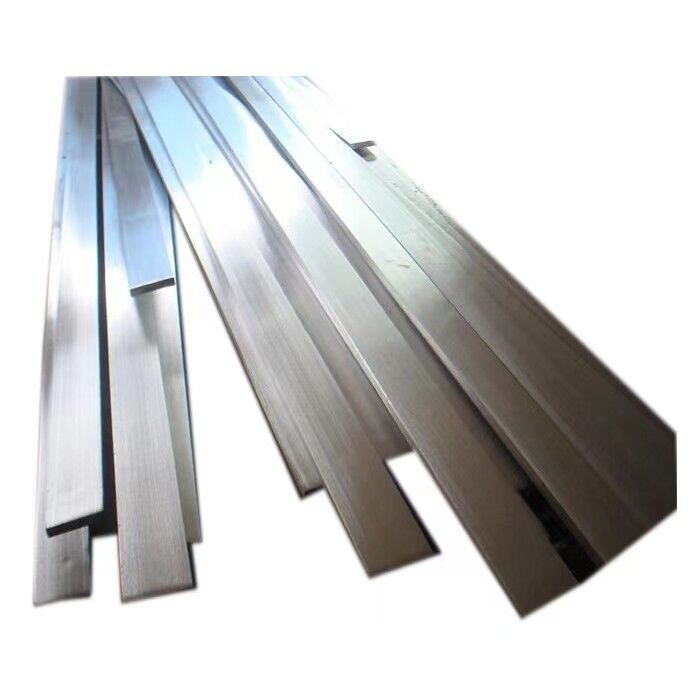

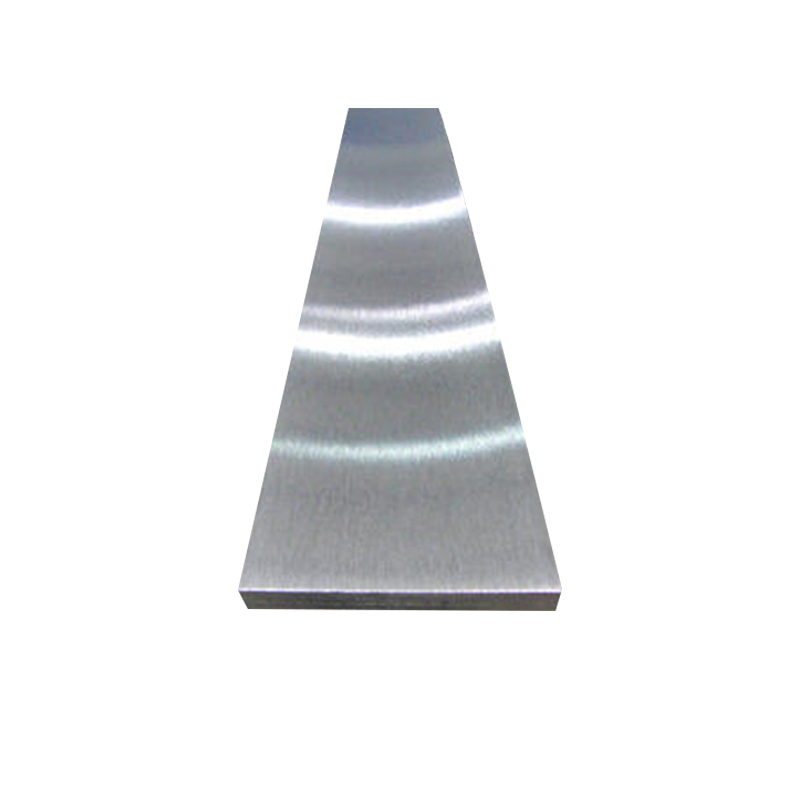

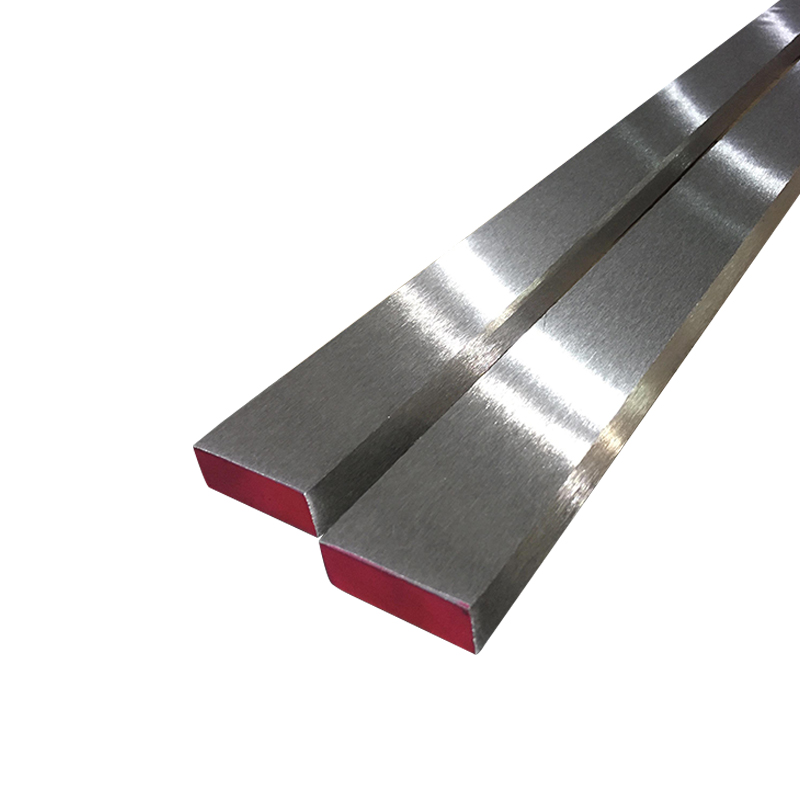

Stainless steel rectangular bar
The stainless steel bar has a smooth surface, high plasticity, toughness and mechanical strength, and is resistant to corrosion by acids, alkaline gases, solutions and other media.

Sales manager: CHAN

Phone: +8618305305398

Whatsapp: +8618305305398

Email: erya.lv@s-materialgroup.com

View More

Product introduction

Stainless steel rectangular bar

The stainless steel bar has a smooth surface, high plasticity, toughness and mechanical strength, and is

resistant to corrosion by acids, alkaline gases, solutions and other media. It is an alloy steel that does not

rust easily, but not absolutely rust-free.


1. Weldability

Different product uses have different requirements for welding performance. A class of tableware generally

does not require welding performance, and even includes some pot enterprises. However, most products

require good welding performance of raw materials, such as second-class tableware, thermos cups, steel

pipes, water heaters, water dispensers, etc.

2. Corrosion resistance

Most stainless steel products require good corrosion resistance, such as Class I and II tableware, kitchen

utensils, water heaters, water dispensers, etc. Some foreign merchants also do corrosion resistance tests on

the products: use NACL aqueous solution to heat it to boiling, and pour it after a period of time. Remove the

solution, wash and dry, and weigh the weight loss to determine the degree of corrosion (Note: When the

product is polished, the Fe content in the abrasive cloth or sandpaper will cause rust spots on the surface

during the test)

3. Polishing performance

In today's society, stainless steel products are generally polished during production, and only a few products

such as water heaters and water dispenser liner do not need polishing. Therefore, this requires that the

polishing performance of the raw material is very good. The main factors that affect the polishing performance

are as follows:

(1)Surface defects of raw materials. Such as scratches, pitting, pickling, etc.

(2)The problem of raw materials. If the hardness is too low, it will not be easy to polish when polishing (the BQ

property is not good), and if the hardness is too low, the orange peel phenomenon is easy to appear on the

surface during deep drawing, thus affecting the BQ property. BQ properties with high hardness are relatively good.

(3)For the deep-drawn product, small black spots and RIDGING will appear on the surface of the area with a large

amount of deformation, thus affecting the BQ performance.

4. Heat resistance

Heat resistance means that stainless steel can still maintain its excellent physical and mechanical properties at

high temperatures.

Influence of carbon: Carbon is an element that strongly forms and stabilizes austenite and expands the austenite

region in austenitic stainless steels. The ability of carbon to form austenite is about 30 times that of nickel, and

carbon is an interstitial element that can significantly increase the strength of austenitic stainless steel through

solid solution strengthening. Carbon can also improve the stress  corrosion resistance of austenitic stainless steel

in highly concentrated chloride (such as 42% MgCl2 boiling solution).





Chemical  Composition  of  Material

Composition

      Material
201202304316430

C≤ 0.15≤ 0.15≤ 0.08≤ 0.08≤ 0.12

Si≤ 1.00≤ 1.00≤ 1.00≤ 1.00≤ 1.00

Mn5.5-7.57.5-10≤ 2.00≤ 2.00≤ 1.00

P≤ 0.06≤ 0.06≤ 0.045≤ 0.045≤ 0.040

S≤ 0.03≤ 0.03≤ 0.030≤ 0.030≤ 0.030

Cr16-1817-1918-2016-1816-18

Ni3.5-5.54-68-10.510-14

Mo


2.0-3.0

Mechanical  Property
Material  Item       201202304316

Tensile  Strength≥ 535≥ 520≥ 520≥ 520

Yield  Strength≥ 245≥ 205≥ 205≥ 205

Extension≥ 30%≥ 30%≥ 35%≥ 35%

Hardness  (HV)< 253< 253< 200< 200

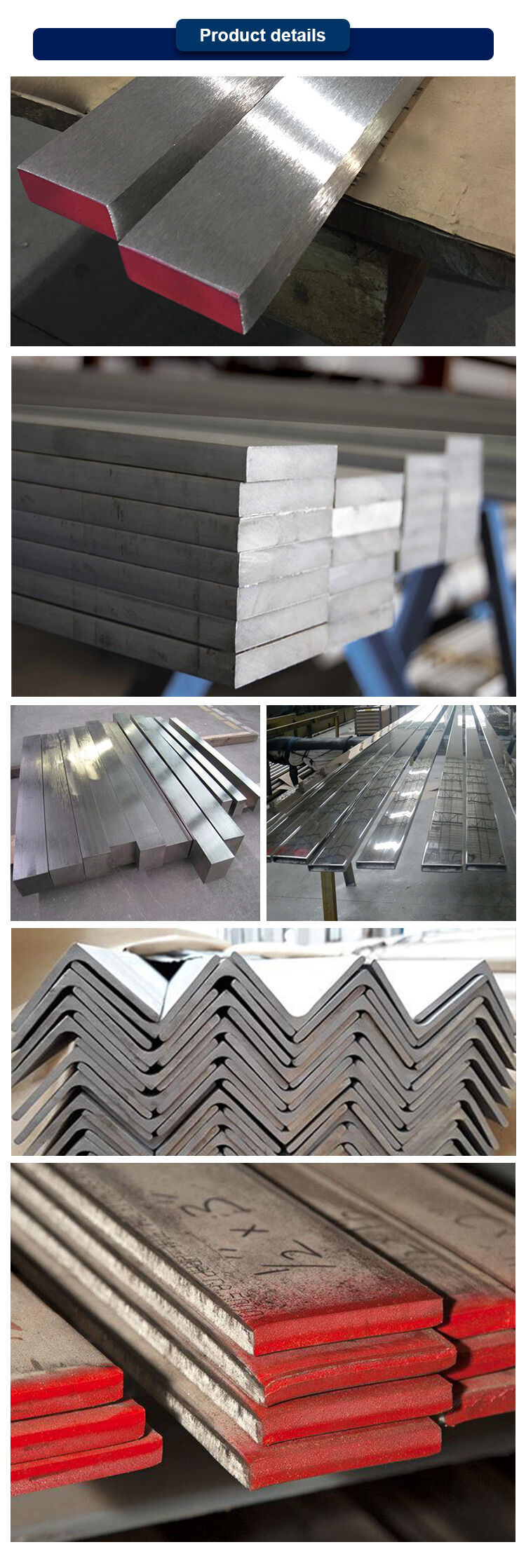

Stainless steel rectangular bar details.jpg

Stainless steel rectangular bar testing.png


Advantage

1. Selected materials carefully: high strength, good pressure bearing, firm and pressure resistance,

smooth and beautiful inside and outside, not easy to be deformed by force

2. The cut surface is smooth: no burrs, no hand cutting, equipped with good equipment and craftsmanship

and a skilled technical team

3. Complete specifications: sufficient inventory, non-standard products support cutting and customization,

and provide cutting, drilling, surface and other processing technologies

4. Quality Assurance: Strict quality inspection at outgoing warehouse, only qualified inspection can leave

the factory

5. Wide range of applications: industrial industry, automobile industry, machinery manufacturing, construction

engineering, ship construction, aviation manufacturing, etc.



Application

Due to the many great features of stainless steel, it is widely used in many industries. It includes constructions,

home appliances, automobiles, kitchen accessories, mechanical structure, decoration engineering, chemical

industry, etc. Let's have a brief review.

1. Construction & Buildings

It is an essential building material widely used in commercial buildings, bridges, airports, etc. The most common

uses include structural frames, roofing, wall panels, claddings, door panels, backsplash, handrailings, ceilings,

elevator hall, inner panels of elevators, etc. Also, it is perfect for making handicrafts.



2. Automobile

Different grades of stainless steel can be used to manufacture car bodies, grills, trims, wheel axles, bearings,

vehicular exhaust, fuel tanks, etc.



3. Industrial Uses

Stainless steel is ideal for transporting chemicals, liquids, etc. It is typical for medical uses, gas and oil industries,

such as pipelines and tubes, blades, operation tables, pumps, processing or storage tanks & vessels, etc.



4. Household Appliances

About 75% of household appliances are made of stainless steel, including internal panels of cookers, heaters,

ovens, burners, conveyors, grills, television, washing machine, refrigerator, kitchen hardware, etc.



5. Furniture & Daily Uses

Stainless steel coil and sheet are also versatile in our daily life, such as trash cans, screens,benches, tables, beds,

bookshelves, advertising boards, display stands, etc.


FAQ

Q1: Are you trading company or manufacturer ?

A: We are professional manufacturer with 20 years' experience, and our company also is a very professional

a trade company for steel products.We can also provide a wide range of steel products.



Q2: Will you delivery the goods on time?

A: Yes,we promise to deliver on time,indemnity clause in contract terms will work if we couldn't.



Q3: Do you provide samples ? Is it free or extra ?

A: The samples are free,you just need to pay the courier freight.



Q4: Do you accept the third party inspection?

A: Yes, absolutely we accept.



Q5: How could you guarantee your products?

A: Products are manufactured by certified workshops, inspected by professional inspector. We also issue

the warranty MTC to guarantee the quality.



Q6: How do we trust your company?

A: We specialise in steel business for many years, authenticated by SGS,welcome to visit our factory.



Q: What's your advantages?

A: Our own prodution lines make the good prices and high quality possible and seasoned workers serve

you 7*24hours.
